Working principle and engineering application scope
Beiyi hydraulic pile extractor is designed for drawing out the
steel H-pile from a diameter from 500mm to 700mm, with lifting
capability of 300T.
Bacically, we have two styles of such pile extractor BY-BZJ-300DS
and BY-BZJ-300LS. Both are operated by hydraulic pressure station
with an wireless remote control, which can improve your working
effciency greatly.
Working principle

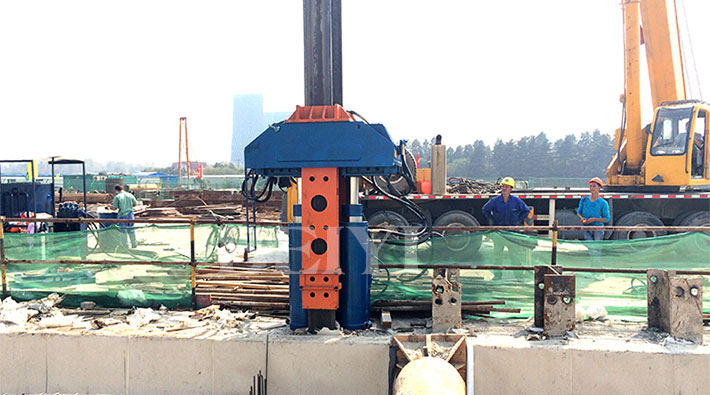

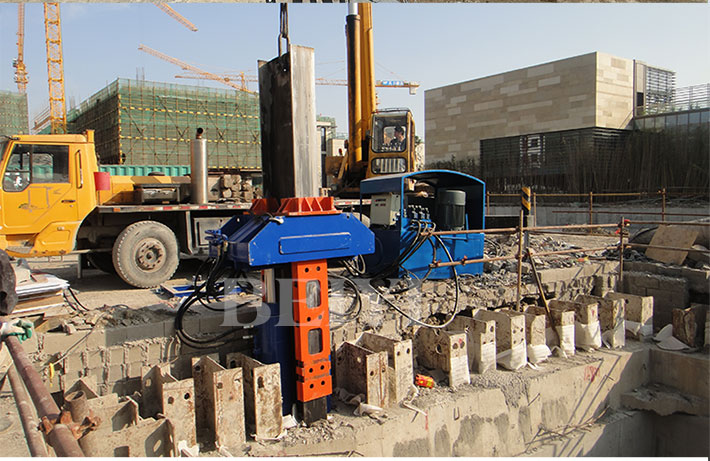

H-beam pile extractor grip the pile head with its clip and
hydraulic cylinder compulsory jacked pile clamping apparatus, make
it rise up a certain distance, then pull out pile hop by hop. It is
used in clay, sand or containing a small amount of gravel soil to
pull out the i-beam pile or h-beam steel piles.
Engineering application scope
H-beam hydraulic pile extractor is mainly used in municipal
construction, pipe laying, engineering, sewage treatment,
supporting the construction of tunnel. Recycle the H-beam steel
piles to reduce the disposable of h-beam piles and reduce
construction cost. The whole machine can adapt narrow space and
insufficient space on the top of site.
Product application
1.Similar products currently use separate pile drawing machine
while our company use autonomous design one-piece structure
hydraulic pile extractor. Integral lifting operation more easy and
cost less time
2.Suitable for 500mm-700mm h-beam piles and other commonly used
specifications pulling operations. If you need to pull out 900mm
h-beam piles, then it needs custom-made.
3.BY-BZJ-500DS Hydraulic pile extractor, modern design, chassis
removable. No matter how dense is the steel pile, it can also
easily pull out.
4.BY-BZJ-700LS Hydraulic pile extractor, design is more human
nature, efficient. Equipped with double oil-saving cylinder, it has
the function of regulating speed and can save more time. Wireless
remote control, easy to learn.
Working principle
H-beam pile extractor grip the pile head with its clip and
hydraulic cylinder compulsory jacked pile clamping apparatus, make
it rise up a certain distance, then pull out pile hop by hop. It is
used in clay, sand or containing a small amount of gravel soil to
pull out the i-beam pile or h-beam steel piles.
Engineering application scope
H-beam hydraulic pile extractor is mainly used in municipal
construction, pipe laying, engineering, sewage treatment,
supporting the construction of tunnel. Recycle the H-beam steel
piles to reduce the disposable of h-beam piles and reduce
construction cost. The whole machine can adapt narrow space and
insufficient space on the top of site.
Pile excavator performance |
Rated working pressure | 35Mpa |
Maximum flow | 160L/min |
Rated pulling force | 300 t |
Specifications for H-beam | 500mm-700mm |
Maximum clamping force | 260 t |
