    Cutting concrete pile head machine BYP500S Concrete foundation pile Hydraulic pile breaker

    Ask Lasest Price
    Brand Name : BEIYI
    Model Number : BYP500S
    Certification : ISO, CE
    Price : usd8500/set
    Payment Terms : T/T, 30% deposit, balance before shipment
    Supply Ability : 1000 sets per month
    Delivery Time : Within 7 days after receiving your payment
    • Product Details
    • Company Profile

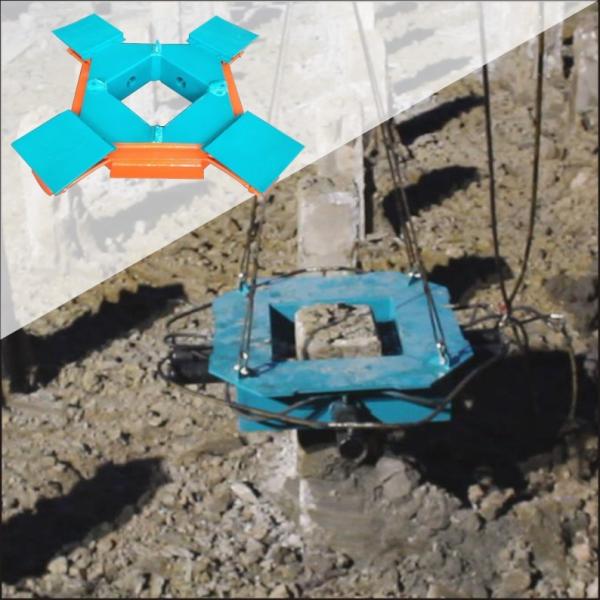

    Cutting concrete pile head machine BYP500S Concrete foundation pile Hydraulic pile breaker

    BEIYI MACHINERY Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-2200 mm and hydraulic square pile breaker is suitable for square piles from 300-650 mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.

    Advantages:
    1.High efficiency
    2.Reducing manpower
    3.Low cost
    4.Casting modules
    5.Wireless remote control
    6.Module design
    7.Quick assembling connector
    8.More choices of hydraulic sources

    Product Description

    BEIYI MACHINERY Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-2200mm and hydraulic square pile breaker is suitable for square piles from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.


    1. BEIYI MACHINERY Hydraulic pile breaker is the most advanced and can achieve high efficiency, low noise in pile broken.

    2.It has the advanced modularization and break different diameter pile by different number of modular combination.

    3.It has high cost performance, low operating cost and its cost performance is nearly the same with the foreign products.

    4.It operates easily and don’t need any professional skill, besides, it operates very safely.

    5.It can be connected to a variety of engineering machinery to make achieve of products’ commonality and economical efficiency. It also can be hanged in the excavators, cranes and telescopic arm, etc.

    6.High life design can bring you the best benefits.


    Working principle

    Hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.

    Engineering application scope

    Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round,square and stainless steel series pile breaker by the different pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally HYDRAULIC SQUARE PILE BREAKER can break pile diameter from 200-2500mm which can meet the requirements of all kinds of large-scale infrastructure construction.



    Performance Parameter

    Brokenpile diameter

    400-600mm

    Max.Cylinder pressure

    30MPa

    Max.Hoist Capacity

    ≤300mm

    Max.Thrust

    320KN

    Max.Cylinder required

    20L/min

    Machinery Tonnage

    ≥7T

    Max.Oil Cylinder trip

    200mm

    Quantity/8h

    100/8h

    Total weight

    0.78T-1.2T
